USBISP-MK2 Manual

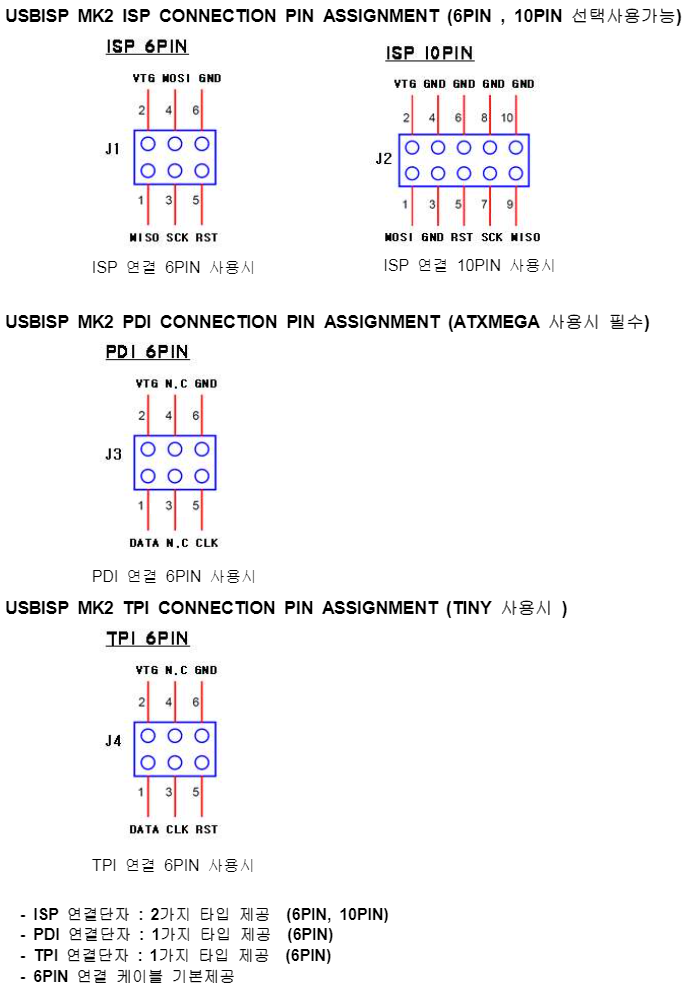

--- 모드별 핀사양
--- USBISP MK2 Supported Devices
<ISP Mode>
ATmega1280 ATmega1281 ATmega1284P ATmega1284 ATmega128A ATmega128RFA1 ATmega128 ATmega162 ATmega164A ATmega164PA ATmega164P ATmega165A ATmega165PA ATmega165P ATmega168A ATmega168PA ATmega168P ATmega168 ATmega169A ATmega169PA ATmega169P ATmega16A ATmega16HVBrevB ATmega16HVB ATmega16M1 ATmega16U2 ATmega16U4 ATmega16 ATmega2560 ATmega2561 ATmega324A ATmega324PA ATmega324P ATmega3250A ATmega3250P ATmega3250 ATmega325A ATmega325P ATmega325 ATmega328P ATmega328 ATmega3290P ATmega3290 ATmega329A ATmega329PA ATmega329P ATmega329 ATmega32A ATmega32C1 ATmega32HVBrevB ATmega32HVB ATmega32M1 ATmega32U2 ATmega32U4 ATmega32 ATmega48A ATmega48PA ATmega48P ATmega48 ATmega640 ATmega644A ATmega644PA ATmega644P ATmega644 ATmega6450A ATmega6450P ATmega6450 ATmega645A ATmega645P ATmega645 ATmega6490A ATmega6490P ATmega6490 ATmega649A ATmega649P ATmega649 ATmega64A ATmega64C1 ATmega64M1 ATmega64 ATmega8515 ATmega8535 ATmega88A ATmega88PA ATmega88P ATmega88 ATmega8A ATmega8U2 ATmega8 ATtiny13A ATtiny13 ATtiny1634 ATtiny167 ATtiny2313A ATtiny2313 ATtiny24A ATtiny24 ATtiny25 ATtiny261A ATtiny261 ATtiny26 ATtiny4313 ATtiny43U ATtiny44A ATtiny44 ATtiny45 ATtiny461A ATtiny461 ATtiny48 ATtiny828 ATtiny84A ATtiny84 ATtiny85 ATtiny861A ATtiny87 ATtiny88 AT90CAN128 AT90CAN32 AT90CAN64 AT90PWM161 AT90PWM1 AT90PWM216 AT90PWM2B AT90PWM316 AT90PWM3B AT90PWM81 AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82 ATA6285 ATA6286
<PDI Mode>
ATxmega128A1U ATxmega128A1 ATxmega128A3U ATxmega128A3 ATxmega128A4U ATxmega128B1 ATxmega128B3 ATxmega128C3 ATxmega128D3 ATxmega128D4 ATxmega16A4U ATxmega16A4 ATxmega16C4 ATxmega16D4 ATxmega192A3U ATxmega192A3 ATxmega192C3 ATxmega192D3 ATxmega256A3BU ATxmega256A3B ATxmega256A3U ATxmega256A3 ATxmega256C3 ATxmega256D3 ATxmega32A4U ATxmega32A4 ATxmega32C4 ATxmega32D4 ATxmega384C3 ATxmega384D3 ATxmega64A1U ATxmega64A1 ATxmega64A3U ATxmega64A3 ATxmega64A4U ATxmega64B1 ATxmega64B3 ATxmega64C3 ATxmega64D3 ATxmegaD4
<TPI Mode>
ATtiny4 ATtiny5 ATtiny9 ATtiny10 ATtiny20 ATtiny40
